S.OB Kontakt WSH3 / Stereo Contact Microphone, Passive Piezo Pickup

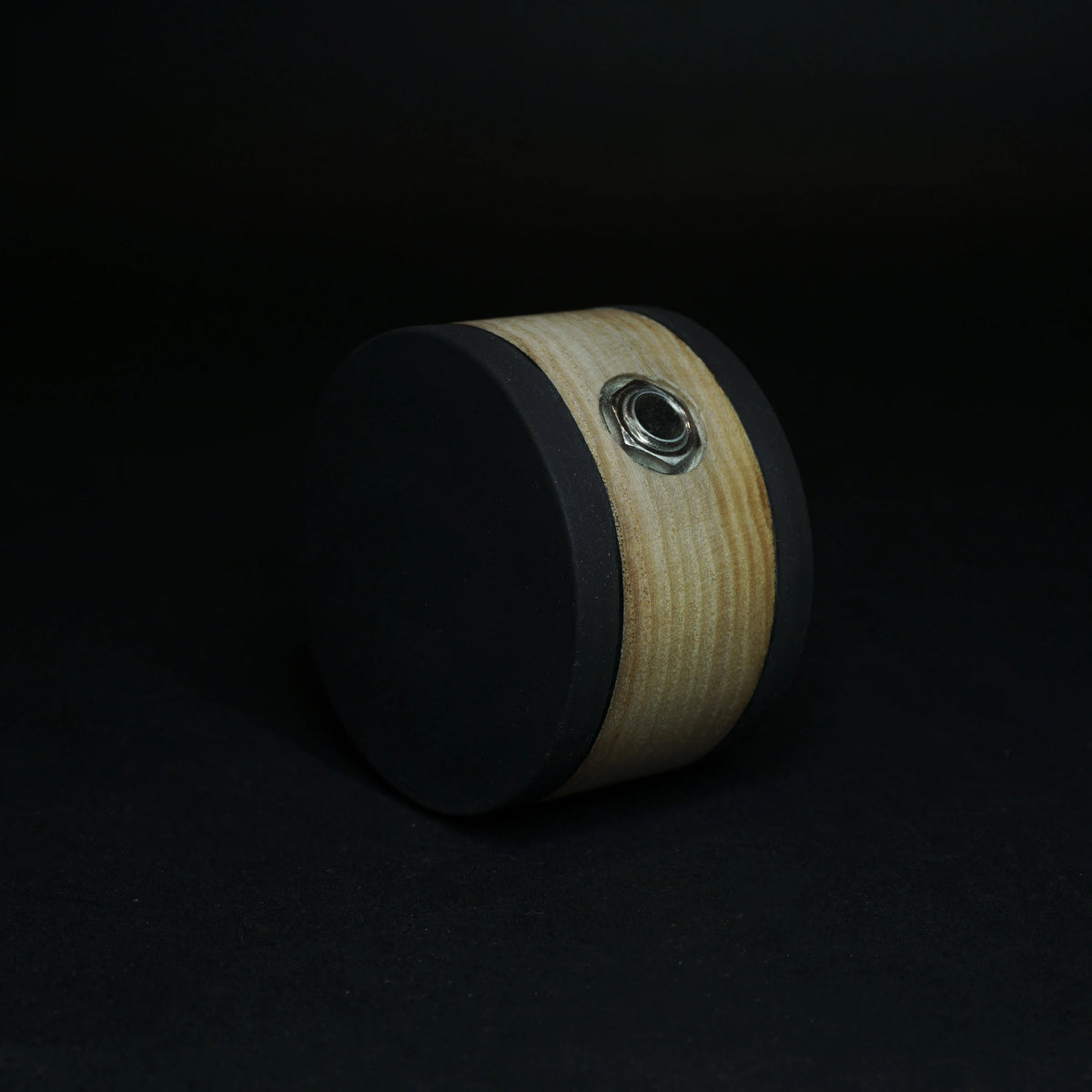

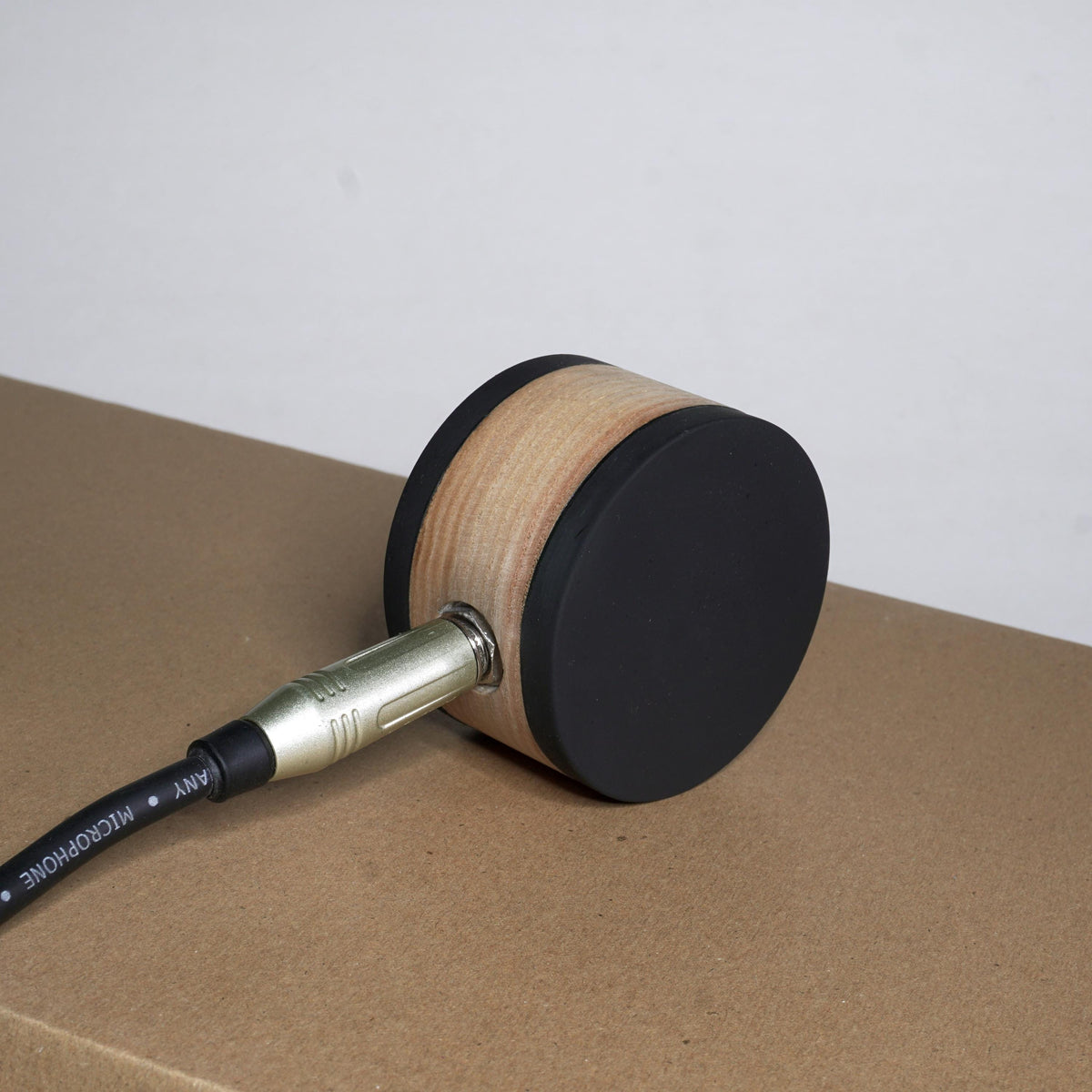

Stereo Large Wooden Piezo Contact Microphone

A handcrafted passive stereo piezoelectric contact microphone with a unique wooden shell and rubber pads, created for sound experiments, sound research, live performances, and sound recording.

The microphone combines a recycled hardwood shell with protective rubber pads, creating a distinctive and natural-looking sound object.

The wooden shell is made from recycled hardwood and impregnated with acrylic varnish for increased durability. Each microphone has a unique wood grain and pattern, so no two pieces are exactly alike. The wood pattern is naturally different on every product and cannot be selected when ordering.

The rubber pads affect the high frequencies, giving the microphone a more natural sound while also helping to protect the piezo elements.

Explore the hidden sonic world inside objects and discover the unique vibrations of different materials and surfaces.

Output options

• One-side mono – to be used with a mono jack cable (TS) and connected to a mic/line input.
• Two-side mono – to be used with a stereo/balanced jack cable (TRS) and connected to a mic/line input.
• Stereo output – to be used with a stereo/balanced jack cable (TRS) and connected to a stereo input.

Features

• Passive stereo piezoelectric contact microphone
• Handcrafted recycled hardwood shell
• Protective rubber pads
• Rubber pads help shape the high-frequency response
• Rubber pads help protect the piezo elements
• Unique wood grain and pattern on every microphone
• Durable construction
• Ideal for sound experiments, sound research, live performance, and recording

Amplification

For better amplification and a fuller sound, it is recommended to use a preamp or Hi-Z (JFET) input.

Mounting

The recommended way to attach the microphone to a surface is with double-sided tape.

You can also experiment with different mounting methods to find what works best for your particular sound source and application.

Do not press the microphone too hard against the surface, as excessive pressure can affect the sound and potentially damage the piezo elements.

Specifications

• Dimensions: Ø 62 mm / 2.441" × height 38 mm / 1.496"
• Output: Stereo 6.3 mm / 1/4" jack
• Weight: 100 g / 0.2204 lb
• Type: Passive stereo piezoelectric contact microphone
• Shell: Recycled hardwood, impregnated with acrylic varnish
• Pads: Rubber

Production time

Each microphone is handmade to order and takes approximately 5 business days to produce.
